RECESSED HIGH SECURITY TRIPLE BIASED ANSI CONTACT

RECESSED HIGH SECURITY TRIPLE BIASED ANSI CONTACT

RECESSED HIGH SECURITY TRIPLE BIASED ANSI CONTACT MSS2757-RAC

TA-MSS2757-RAC

The Model MSS2757 High Security Magnetic Contact with recessed stainless steel ANSI door plate is built with Flair’s time tested high security technology. The contact is SPDT with triple bias reeds. Trying to defeat the switch with an external magnet will trigger an alarm. This magnetic contact also comes with tamper loop which will trigger alarm if the wires are cut. There are five color coded wires. The MSS2757 is a low cost alternative to other high security contacts on the market and is used in government and high security commercial facilities and jails around the world.



SPECIFICATIONS:

Part Number:             MSS2757-RAC

Circuit Configuratiion: High Security Triple Bias

Electrical Rating:        Max. 30VDC, 20 ma,3 W

Details:                       Urethane potted for                                                                               maximum protection of electrical                                                           and resistance to                                                                                   harsh environment

Gap:                           0” to 3/16"

Lead Length:             12" #22AWG Wire Leads

Loop Type (with magnet present):

SPDT Door Position Switch, Normally Closed Tamper

Mounting:                  Recessed Stainless Steel ANSI Door                                                    Plate

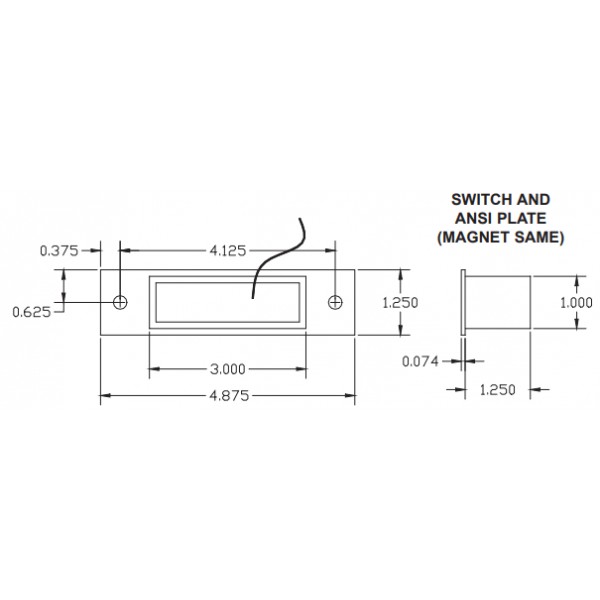

Size:                         1 3/8″ Deep with 1 1/4″ W x 4 7/8″ L                                                      ANSI Plate

Termination:              Wire Leads

Ul Rating:                  None

Warranty:                  Lifetime Warranty


FEATURES:

* Three Biased Reeds

* Gap 0” - 3/16”

* Rare Earth Magnets

* Tamper Loop Standard

* SPDT Configuration

* Attractive Grained Corrosion Resistant Stainless

  Steel ANSI Plate

* 12” #22 AWG Wire Leads

* Epoxy sealed switch for long life and     maximum resistance to harsh environments
