36" Activation Switch

36" Activation Switch

36 inch tall door operator switch. 2 x SPDT momentary

switch with handicap symbol, push to open.

TA8136-AL

The Thomas TA-8136 High-Switch offers an accessible and convenient way to activate automated doors. Simple installation and ease of use in both wired and wireless models make them suitable for most applications. They employ two heavy duty switches designed to last for years.












Features:

• Heavy-duty construction, ADA Compliant

• Low profile contoured design, with easy activation from side angles

• Over 94 square inches total activation area

• Choice of 4 different stock graphics

• (2) fully redundant SPDT, 15 Amp., UL listed, switches

• Choice of anodized clear aluminum or dark bronze finishes

• Optional wireless transmitters

• Adjustable leveling screws for easy installation on uneven wall surfaces



Specifications:

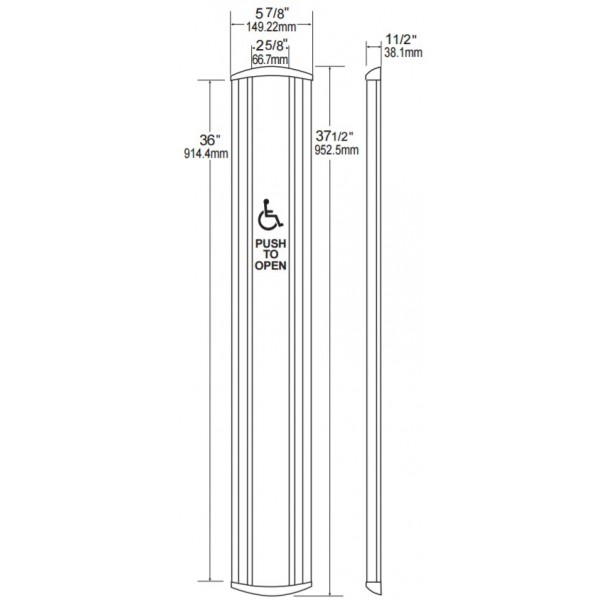

Dimensions: 37.5” H x 5.875” W x 1.5” D

Materials: Extruded Aluminum

Finish: Clear or Dark Bronze Anodized

Operating Voltage: 12 or 24 VDC/AC

Contact: 2 x SPDT Momentary, 15A @ 30V










Models:

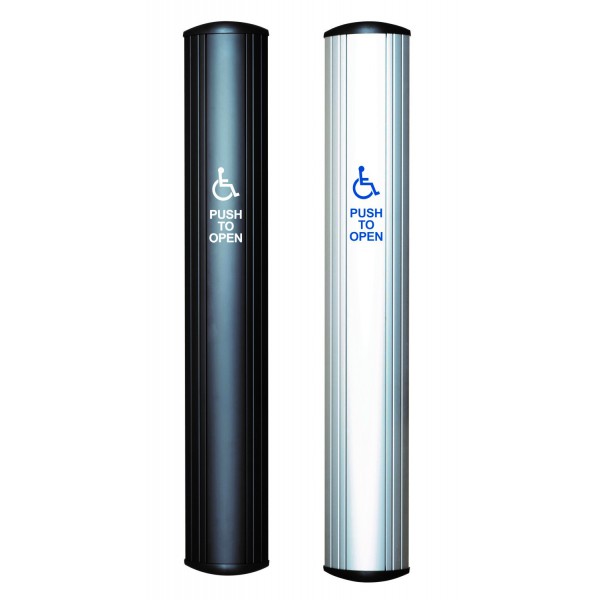

TA-8136-AL, Clear Anodized, “PUSH TO OPEN” & Wheelchair Symbol

TA-8136-BZ, Dark Bronze Anodized, “PUSH TO OPEN” & Wheelchair Symbol



Options:

Add: -NT, Wheelchair Symbol only, No Text

Add: -NS, “Push To Open” text only, No Symbol

Add: -NG, No graphics, blank switch only

Add: - TX, Factory Installed 915 MHz RF Transmitter
