Interconnected Lever Lock

Interconnected Lever Lock

Commercial interconnected lever lock, passage single locking, flat lever

Grade 2


Deadbolt is thrown or retracted by key in upper deadbolt cylinder from outside or by thumbturn inside. Latchbolt is retracted by rotating lever from either side. Rotating inside lever retracts both deadbolt and latchbolt simultaneously.


Meets and Exceeds ANSI - A156.12, Series 4000, Grade 2 Standards

UL Listed for "A" Label 3 Hour Fire Doors

Meets ADA and ANSI A117.1 accessibility codes

Inside lever retracts both deadbolt and latchbolt simultaneously

Steel, Zinc dichromated chassis for Corrosion Resistance

5" solid zinc diecast levers and 3" wrought brass rose outside

3" x 8" Wrought brass escutcheon inside with 1/2" projection

Free spinning deadbolt cylinder collar resists wrenching and prying

Anti-sag mechanism with independent lever return springs to prevent lever sag

Non-Handed - Completely reversible (S-A and S-B lever styles are handed)

2 3/4" backset std. with 1 1/8" x 2 1/4" latchface, 2 3/8" backset is available with

1" x 2 1/4" latchface both with self-adjusting front for square or beveled edge doors

Stainless Steel with 1/2" projection, Deadlocking on double locking functions

Grade 1 Solid Brass Cylinder with 1" Throw and Anti-Saw Hardened Steel Pin Insert

6 Pin C Keyway, 2 Keys standard

Optional: 11 optional kwys with replacement cylinders (extra charge applies)

Note: Replacement cylinders shipped loose and are not installed in locksets

Strikes: 2 3/4" T strike and Full lip strike w/ 1/4" R.C. x Standard Deadbolt strike

Door Prep: (2) ANSI A115.2 - 2 1/8" crossbore @ 4" CTC

Door Thickness: Factory Set for 1 3/4", can be adjusted to fit 1 3/8" to 2" thick doors

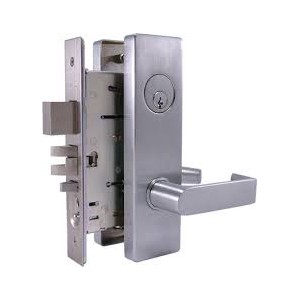

Lever Style: Flat (standard, shown above )(stocked in US26D)

Finish: US26D (in stock)

Fasteners: Combination screws for wood or metal doors and frames
