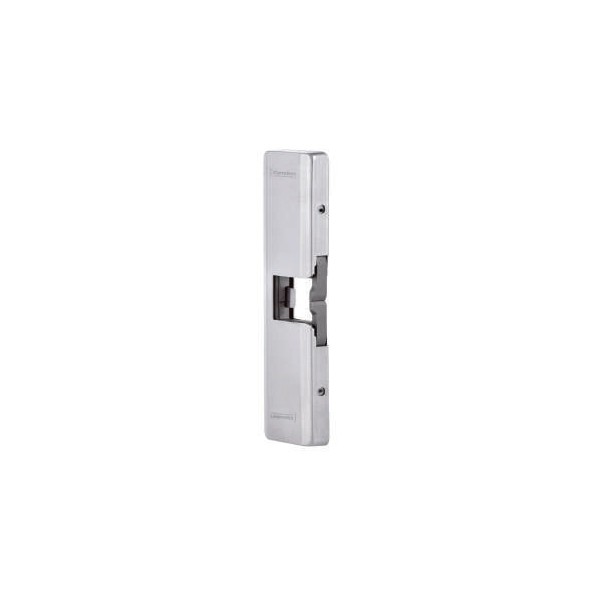

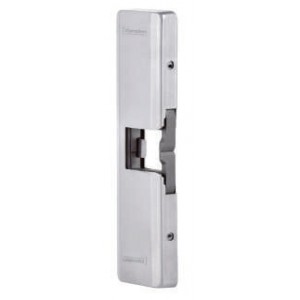

SURFACE MOUNT FIRE RATED

PRELOAD RIM ELECTRIC STRIKE

The Thomas TA-5660,  Grade 1 surface-mount electric strike for rim exit devices, offers the very best strike quality, performance. The ‘Universal’ strike design delivers unparalleled application flexibility, with field selectable 12/24V, AC/DC voltage, fail safe/fail secure operation and horizontal adjustment.

Specifications:

Voltage: 12/24V AC/DC

Current Draw: 280mA@24VDC

560mA@12VDC

Static Strength: 1,500 Lbs.

Dynamic Strength: 70 Ft- Lbs.

Preload:  15 Lbs.

Endurance: 1,000,000 cycles (factory tested),

250,000 cycles (UL verified)

Fire Rating: UL10C/CAN4-S104

3 hrs. (Fail Secure Only)

Mode: Selectable fail safe fail secure

Operation: AC - Buzz

DC- Silent

Duty: Continuous

Latch Monitor: Yes

Dimensions: 9-1/8”H x 1 7/8”W x 3-4” D

(232mm x 48mm x 19mm)

Features:

• ‘No Cut‘ surface mounted

• ‘Universal‘ design with selectable 12/24V,AC/DC and fail safe/fail secure operation

• Single solenoid design provides superior strike reliability

• Tamper resistant stainless steel construction

• Spacer plate available

• 3/4” latch projection

• Latch monitoring included

• Non-handed

• 5 year warranty
