The K.M. Thomas TA-3230T-KIT includes the items to comply with “Universal Washrooms” emergency call system requirements.

The TA-3230T-KIT is an emergency call system that consists of audible and visual signal devices inside and outside of the washroom that are activated by a control device inside the washroom.

An emergency sign that contains the words

“IN THE EVENT OF AN EMERGENCY PUSH

EMERGENCY BUTTON AND AUDIBLE AND

VISUAL SIGNAL WILL ACTIVATE” is included and must be applied above the emergency button. Once the emergency button is pushed, the audible and visual signals will continue to be active for up to 4 hours (adjustable). Opening the door will reset the alarm immediately.

Features:

Easy to install components

Simple and intuitive to use

Cost effective

Code Compliant!

Specifications:

Push Button – 1 Gang

Chime/Strobe(s) – 77dB, 4 x 4 or 2 x 4 Box Reqd.

Transformer – 120VAC – 24VAC, 20VA,

Knock-out or Surface Mount

Control Box – 10”x10”x4”, Pre-wired to labeled terminal strip

Emergency Sign – Compliant wording,

Text Size 25mm High, 5mm Stroke

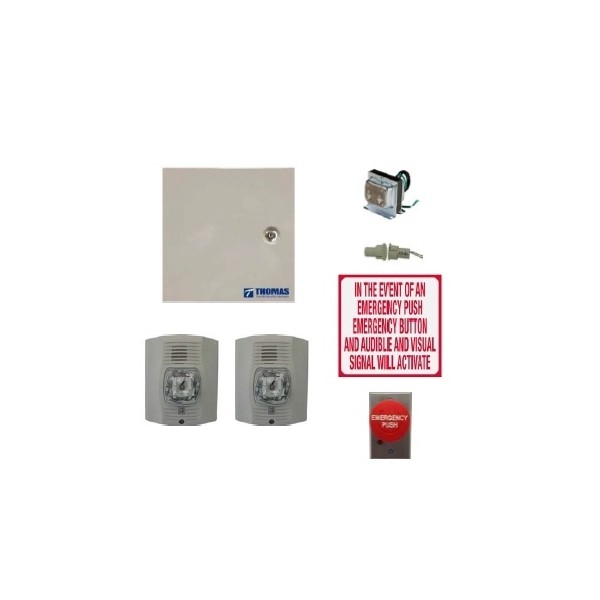

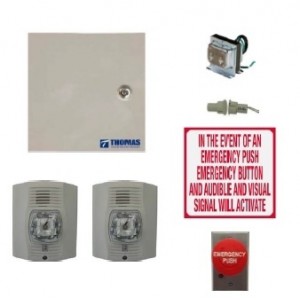

Includes:

1 x TA-3242-EP-LED Emergency Push Button

1 x TA-2531-24 Transformer

1 x TA-4103 Door Position Switch

1 x TA-2901-CAT Pre-wired Control Box

2 x TA-2708 Chime/Strobe

1 x TA-EXS-PCFA Emergency Assistance Sign

1 x TA-D3230T Connection Diagram
