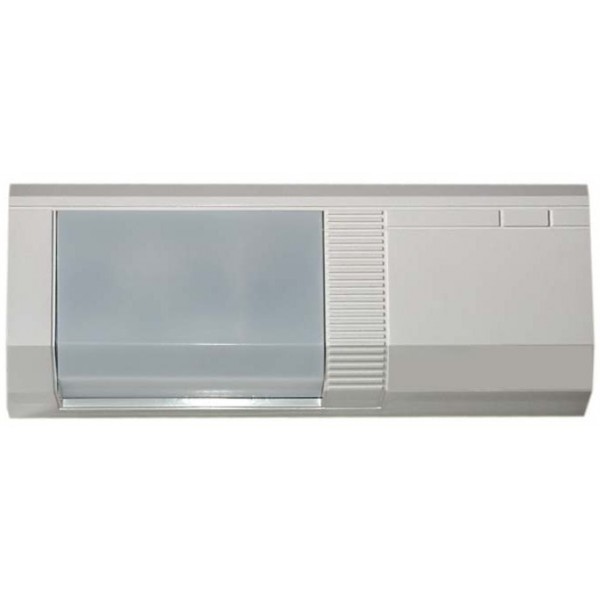

The TA-3200 Request-to-Exit Motion Sensor is designed with dual pyroelectric sensors for increased stability against external light. The sensor adjusts straight downwards, blanketing the doorway to angles of 35º in front of the door. The detection area of the sensor is adaptable to cover a single door or double
doors.

Details

Output relay hold times are adjustable from 0.25 to 60 seconds. Heavy-duty output relays can drive up to 1 amp of current for controlling door strikes and magnetic locks. Fail safe – Fail secure operation is available via dip
switches.

  The TA-3200 Request-To-Exit Motion Sensor is designed for applications involving coverage at the threshold of a doorway. They can be combined with a
card access system to shunt out the alarm system. Varied field selectable options make it a compatible choice for door strike release and alarm system shunting.

Specifications:

• Detection System: Passive Infrared
• Detection Area: Mounting Height: 13’ (4m) Max
                  Pattern: Single or Double (Selectable)
                  Adjustment Range: Wall mount vertically 35°
                                    Overhead mount vertically 20°
                 Sensitivity: Adjustable
• Input Power: 12 – 24 VDC (Non-polarity)
               12 – 24 VAC (50Hz/60Hz)
• Power consumption: 40mA DC, 70mA AC
• Output: Dry Contact Relay 2 Form C
          Operation: One shot
          Hold Time: Adjustable Approximately 0.25 – 60 sec
          Contact Capacity: 30VDC 1A max / 125VAC 0.6A
• LED: Green Operation: Synchronous Dry Contact
• Wiring Connections: Terminal
• Ambient Temperature Rage: -10°C to +50°C (+14°F to +122°F)
• Mounting Position (Indoor): Wall, ceiling, on or under frame
• Weight: 170 g (5.95 oz)
• Appearance: Cover – White ABS Resin, Window – White PS Resin
• Accessories: Tapping screws, 1 Piece
               Resistor (82W, 3W), 1 Piece
               Cover Locking Screw, 1 Piece
