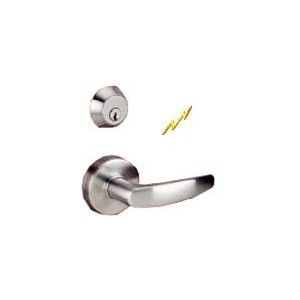

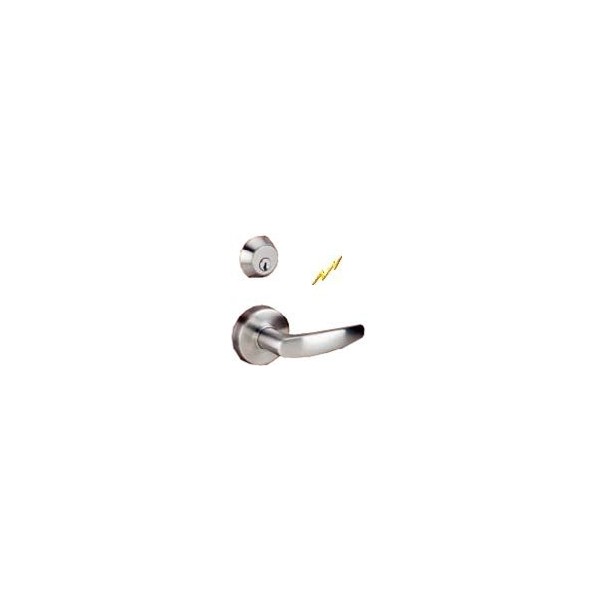

The electrified mortise lock allows remote key access and egress control for standard commercial use applications where security and safety is critical. Common applications include computer rooms, meeting rooms, classrooms and interior doors.

Operating Voltage: 12 or 24VAC/DC (+ or - 10%)

Amperage: 612mA@12 / 330mA@24V

Coil Resistance: 12V = 20 ohms / 24V = 73 ohms

Power Consumption: 8 watts

Features:
UL Listed
Continuous duty solenoids
Low current draw

Options:
12 or 24 Volt (AC/DC)
Fail Safe (Electrically Locked) or Fail Secure (Electrically Unlocked)
REX - Request to exit switch (REX)
LM - Latch Bolt Monitor
SM - Security Monitoring of Latchbolt and Solenoid
