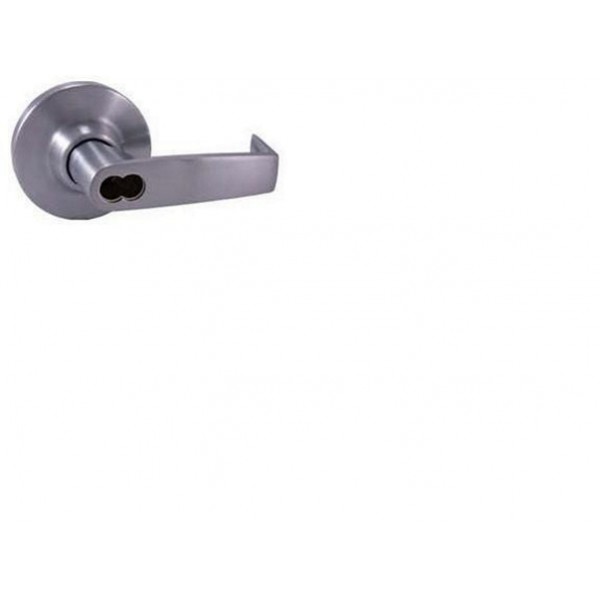

Entry Cylinder Lever Lock IC Core

Entry Cylinder Lever Lock IC Core

Entry cylinder lever lock with IC core.

26D finish.

DHX-82IC-F-26D

Entry Function Lever, Satin Chrome Finish





Details:



Grade 2

UL Listed for A-Label, 3 Hour Fire Doors

Non-Handed - Completely reversible

Meets ADA and ANSI A117.1 accessibility requirements

2 3/4" backset latch with 1 1/8" x 2 1/4" latchface (standard)

Stainless steel latchbolt with 1/2" projection

Steel, Zinc dichromated chassis for corrosion resistance

ANSI A115.2 - Thru-bolted installation

4 3/4" Pressure cast zinc levers

3 3/8" Wrought brass rose

4 7/8" x 1 1/4" ASA Strike (standard)

6 pin solid brass cylinder, C keyway with 2 silver nickel keys

Cylinder plug matches lock finish on standard cylinder

Small Format IC Core prepared locks also available less core (US26D only)

Flat Lever

Tested to over 2 million cycles




Function: Turn/Pushbutton locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked.Pushing button locks outside lever until unlocked with key or inside lever is turned. Deadlocking latchbolt operated by inside lever at all times.

Finish

US26D
